GEMV 510

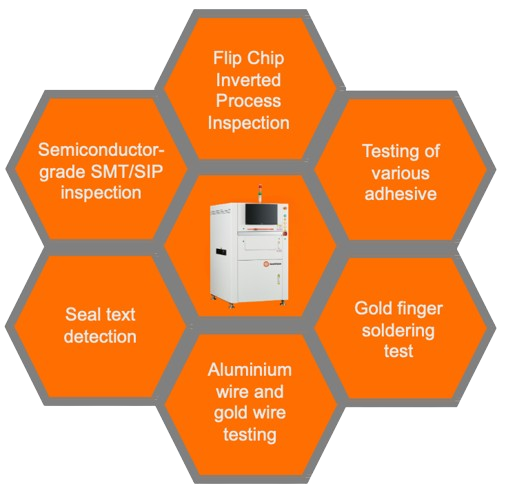

Semiconductor-grade SMT/SIP Inspection
Flip Chip Inverted Process Inspection
Testing of Various Adhesive
Gold Finger Soldering Test
Seal Text Detection
Aluminium Wire and Gold Wire Testing
Square positioning - The 3D positioning algorithm is used to test component height, component size, component offset angle, and other parameters.
Colour Analysis - 2D colour algorithms test for component defects by extracting grayscale values of the three primary colours.
Solder Joint Inspection - A 3D+2D solder joint algorithm is used to test soldering effectiveness by measuring solder joint ramp height and solder joint colour.
Flatness Inspection - A 3D height algorithm measures the flatness of a component by calculating the height differences between different areas of the component body.
Algorithm Analysis for CHIP-type Microdevice Detection
FC Component Detection Algorithm Analysis
DIE/Chip Detection Algorithm Analysis
Analysis of Chip Damage Detection Algorithm
Line positioning - The 2D grayscale algorithm calculates the height and width of the maximum area by detecting the maximum area of the gaps on both sides of a straight line.
Analysis of Chipping Damage Detection Algorithms: 2D/3D Detection Algorithms
Right angle detection - 2D & 3D grayscale algorithms detect the area of right-angle defects by calculating the angle between two lines.
Detection of adhesives containing fluorescent agents
Analysis of Fluorescent Agent Glue Detection Algorithm -- 2D Colour Analysis
The 2D colour analysis algorithm, using a special light source, can clearly distinguish the glue application area. Then, the colour analysis algorithm calculates the glue area and detects defects such as insufficient glue or glue overflow.
Analysis of Solder Adhesion Detection Algorithm for Gold Fingers - Wire Bonding Solder Joints
Gold finger soldering test RS service station fault confirmation interface
Detection of stamp text after moulding
Gem Vision AOI employs diverse image computation schemes, including Optical Character Verification (OCV), Optical Character Recognition (OCR), and Image & Color Matching algorithms. The programming steps are simple and clear, with well-defined and consistent parameters.
Overall framework import solution (Support Automatic Import of framework files and manual programming)
Analysis of Wire Bonding Detection Algorithms
Analysis of Wire Bonding Detection Algorithms - Golden Ball
3D Moulding Inspection for Wire Bonding
Analysis of Wire Bonding Detection Algorithms
Chip Inspection Algorithm - Chips Positioning, Flatness Detection, Silver Paste Detection
IGBT Aluminium Wire Testing
AI Algorithms automatically recognises lines, eliminating the need for manual drawings of outlines.
It can test defects such as the shape, size and offset of bonding points
Aluminium Wire Height Detection Algorithm - 3D Line testing
| Technology Platform | Standard TYPE - C |
|---|---|
| Series | GEMV |
| Model | GEMV 510 |
| Measurement Principle | 3D white light PSLM PMP (Programmable Spatial Light Modulation, Phase Measurement Profilometry) |
| Measurements | Defective Component, Defective Chip, Defective Golden Finger, Poor Glue Quantity, Defective Seal after Plastic Sealing |
| Detection of Non-Performing Types | Defective Components (Missing Parts, Offset, Rotation, Three-Dimensional Polarity, Reverse Parts, OCV, Tilted, Side-mounted, Tombstone, Poor Welding, etc) Defective Chip (Missing Core, Offset, Rotation Chipping, Crack, Flatness, Contamination, etc) |
| FOV Size | 20mm X 15mm (12M 5μm) optional: 1.8μm, 3.1μm, 7μm, 10μm Resolution and 1600W, 2000W Camera |
| Accuracy | XY (Resolution): 10μm (5μm Optional) |
| Repeatability | Height: ≤1μm (4 Sigma) |
| Gage R&R | <10% |
| Inspection Speed | 0.5 Sec/FOV |
| 2D Light Source | Multi-angle, Multi-zone, Three colour 2D Light Source (RGB+W) |
| Mark-point Detection Time | 0.3sec/piece |
| Loader & Unloader | Directly connected to the docking station (Optional large-capacity weak-clamp material box for fully automatic loading and unloading, 4 material box can be entered and exited at the same time) |
| Bar-code Read | Support 1D/2D Barcode Reading |
| Traceability System | Support automatic generation of mapping and upload SECS/GEM |
| Maximum Frame Vehicle Size | 450mmX450mm |
| Transfer Direction | Left to right or Right to left |
| Conveyor Width Adjustment | Manual & Automatic |
| Engineering Statistics | Histogram, Xbar-R Chart, Xbar-S Chart, CP & CPK, % Gage Repeatability Data, SPI , Daily,Weekly/Monthly Reports |
| Programming | Support Manual and Automatic Programming |
| Operating System Support | Windows 10 loT Enterprise (64 bit) |
| Equipment Weight | 985Kg |
